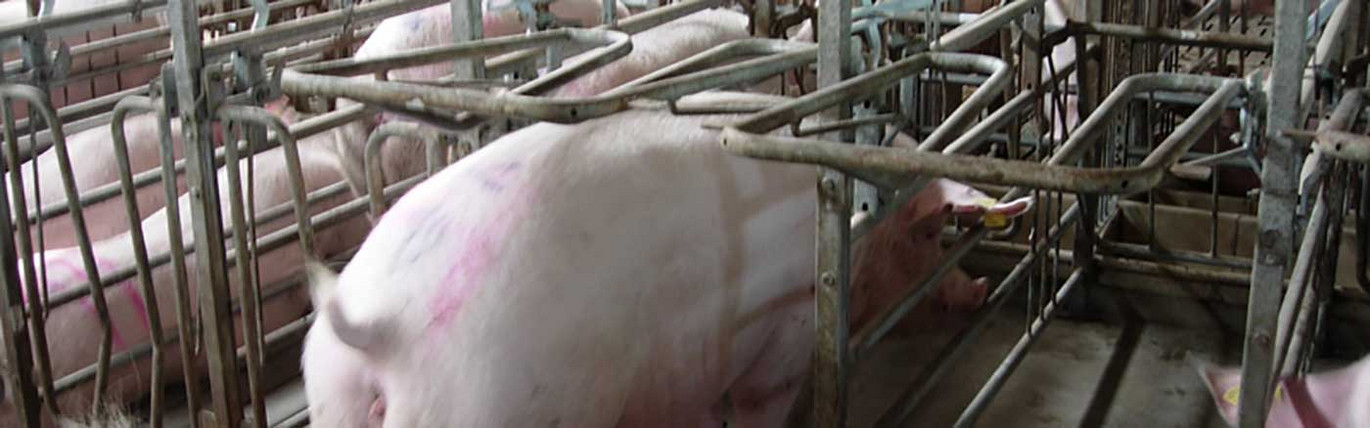

Multibox Comfort
Mating and gestation box for loose sows
Multibox Comfort for loose gestant sows allows easy and unhindred access for stimulation and insemination of sows. A farm manager can easily enter the box when the front door and high posts are combined at the front of the box. It is possible to fasten the box on existing crate sides.
| Length | 2400/2550 mm |
| Height | 1000 mm |
| Width | 500/600/650 mm |
| Posts | 40 x 40 x 4 mm |
| Upper pipes | 33,7 x 2,65 mm |
| Lower pipes | 33,7 x 2,65 mm |
| Bars | 14 mm solid round iron |
| Front/ rear gate | Top hinged |
| Locking system | 2 meter height |
| Quality | Hot galvanized |
| Water supply | 2 meter height: 1” galvanized or stainless steel |
| Water inlet | ½” SS pipe, SS nipple. 1 per 2 boxes |
Download
- Multibox KS (PDF; 1 MB)
