FarrowComfort - Farrowing Pen for Loose Sows

Better animal welfare and overall productivity

FarrowComfort is a farrowing pen for loose sows, where a sow trough is located close to the aisle. The piglet nest is also located close to the aisle, which makes it easy to access both the sow and the piglets.

Download
Contact us

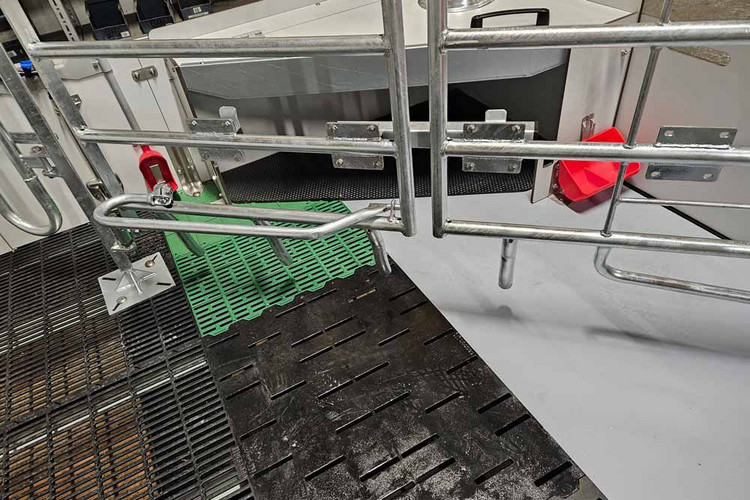

Sow Trough and Piglet Nest are close to the aisle

FarrowComfort is a farrowing pen for loose sows, where a sow trough is located close to the aisle. The piglet nest is also located close to the aisle, which makes it easy to access both the sow and the piglets.

The pen provides plenty of space inside, which is crucial for both the sow’s comfort and makes the handling of the animal easy.

The design includes adjustable farrowing wings which allow adaptation to the individual sow, maximizing safety and comfort. The door in the pen is positioned so that it can be easily opened to both sides or removed completely, giving the sow easy access.

A key aspect of FarrowComfort is the easy observation from the aisle, especially with a lowered area at the sow's rear, which makes it easy to see if the sow needs birthing assistance.

20231219 091449
IMG 8358
1 / 2

Advantages with FarrowComfort:

  • Provides ample room for both the sow and piglets, ensuring comfort and freedom of movement.
  • The sow's trough and piglet nest are strategically placed close to the aisle for easy access and efficient management.
  • A close-fitting door minimizes drafts, creating a warm and safe space for piglets.
  • Flexible, customizable farrowing wings accommodate the needs of sows, enhancing safety and comfort.
  • The pen’s design makes it simple to move sows in and out, saving time and effort.
  • Specially designed farrowing wings allow quick and easy fixation of the sow when needed, improving safety for piglets and handlers.
  • The layout offers excellent visibility from the hallway, allowing for efficient monitoring and management.

"If I had to choose a farrowing pen once again, I would choose this one"

Søren Michaelsen

Søren Michaelsen is a Danish pig farmer. He is in the process of expanding to 900 sows with a 30-kilogram production capacity. Part of the project includes a new farrowing barn for loose-housed sows.

The FarrowComfort farrowing pen has been chosen for this, with the trough and piglet nest facing the aisle. This design allows staff to easily check if the sow is eating while also making cleaning simpler.

Check our more of Sørens project here

FarrowComfort - main features:

IMG 8358

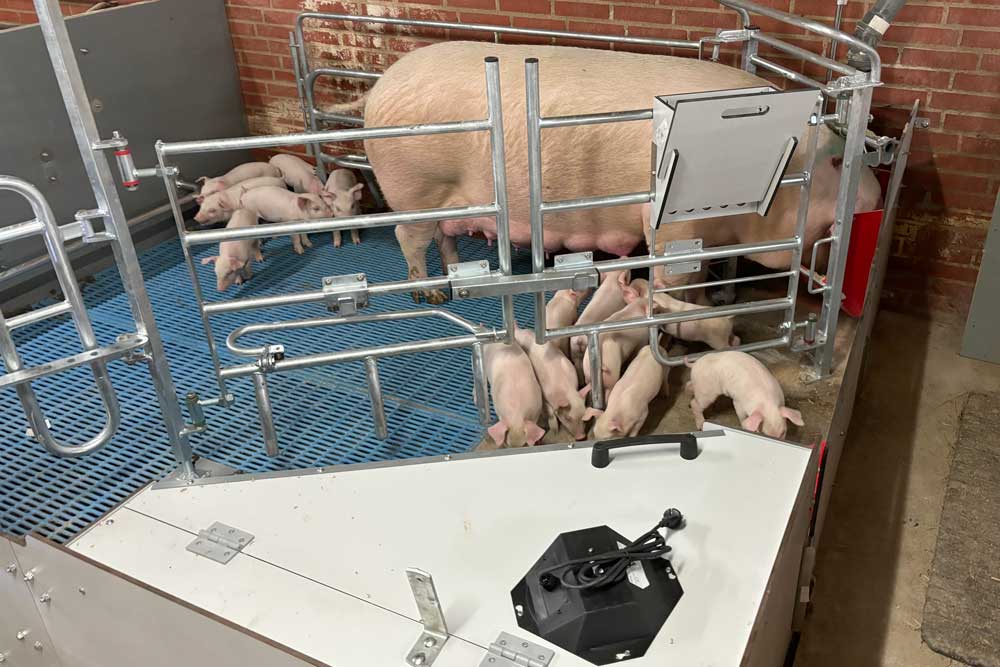

Sow Trough and Piglet Nest are close to the aisle
FarrowComfort is a farrowing pen for loose sows, where a sow trough is located in the immediate vicinity of the aisle. The piglet nest is also located close to the aisle, which makes it easy to access both the sow and the piglets.

20231219 091554

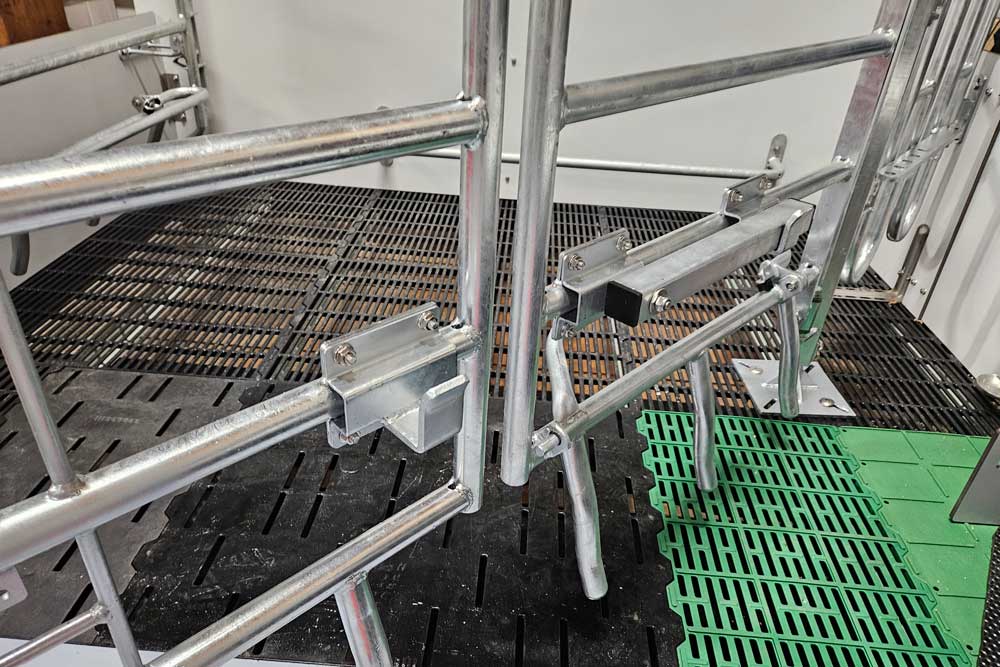

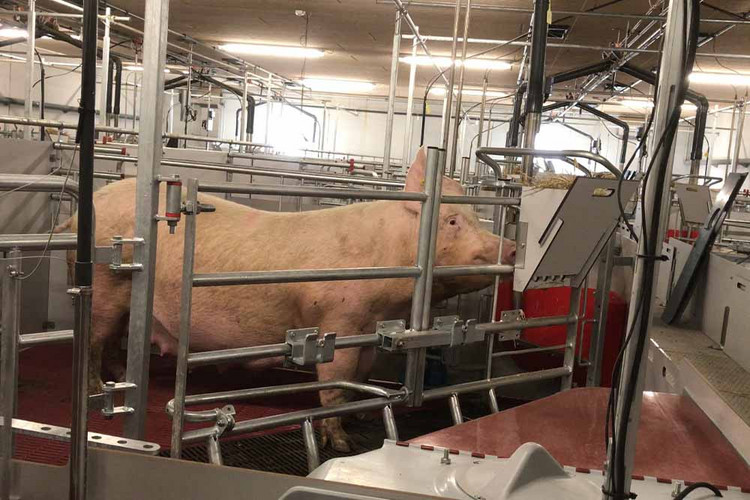

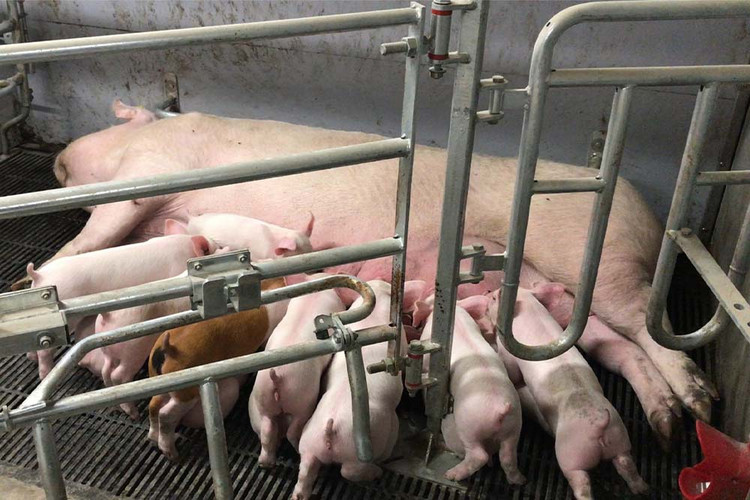

Flexible Farrowing Wings
The design includes adjustable farrowing wings. This allows further customization and ensures that the pen can be individually adapted to each sow, maximizing both safety and comfort.

20231219 091316

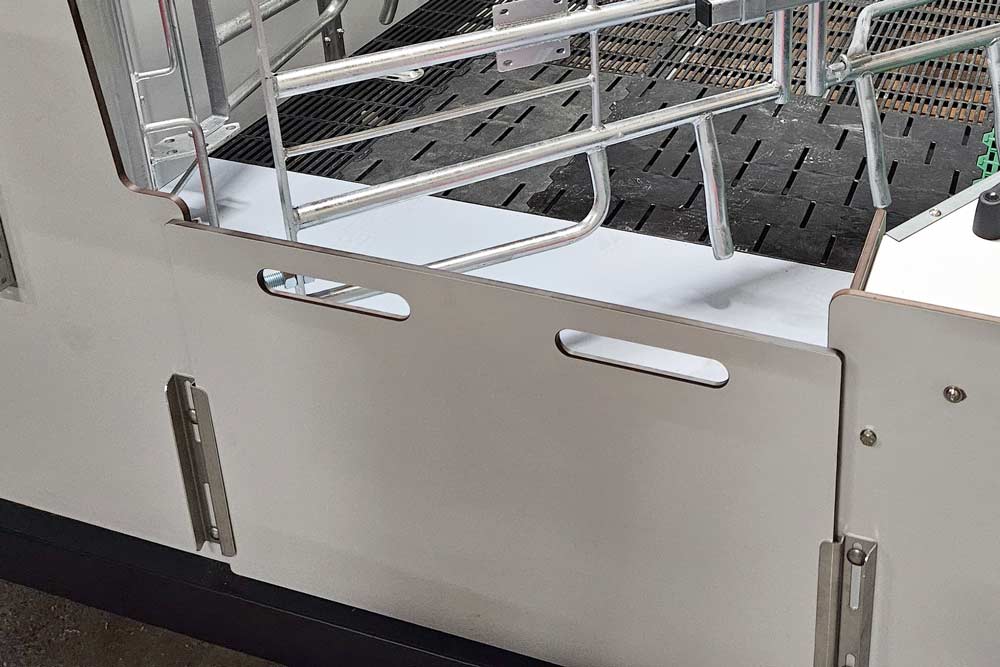

Easy to move the sow in and out
A particular focus in the design is the gate, which fits tightly to the sides and to the floor. This gate is designed so that it can be opened to both sides or removed completely, which allows the sow to enter and exit from both directions.

IMG 1688

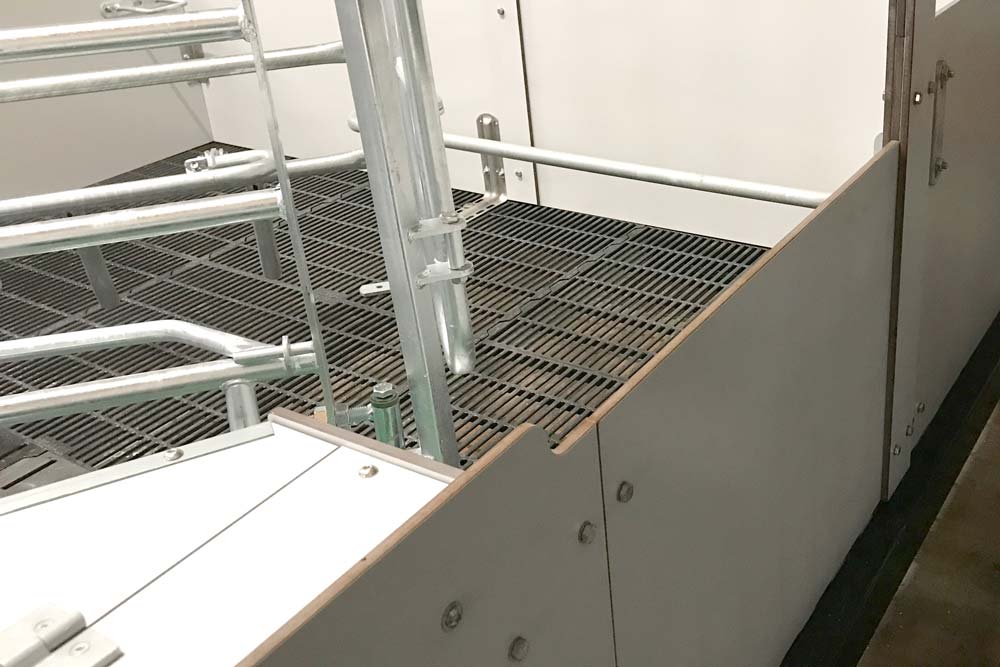

​Good overview from the hallway
An important aspect of FarrowComfort's design is the easy observation from the hallway. It is easy to see if the sow needs birthing assistance. To further improve the overview, there is a lowered area at the sow's rear.

FarrowComfort - Different models:

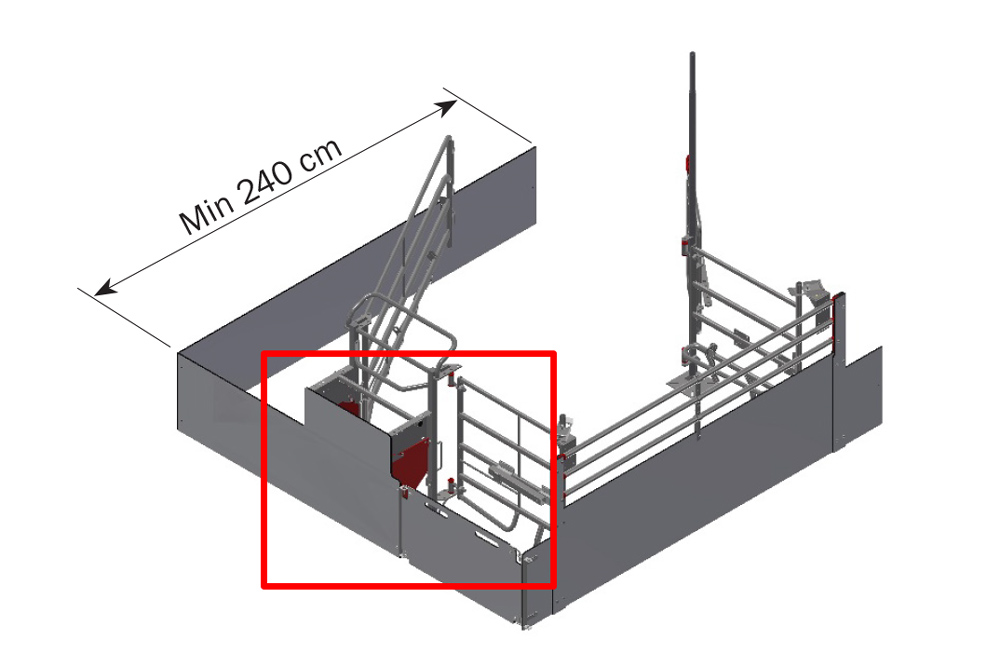

Model-1

MODEL 1 - AISLE TROUGH

Farrowing pen where sow trough is placed near the aisle.

Dimensions,
cm		Diameter,
cm		Surface,
sq.m.		Available sow
space, sq.m.		Available sow
space, %
240x270165/1806,483,859%
250x270165/1806,754,059%
260x270165/1807,024,361%

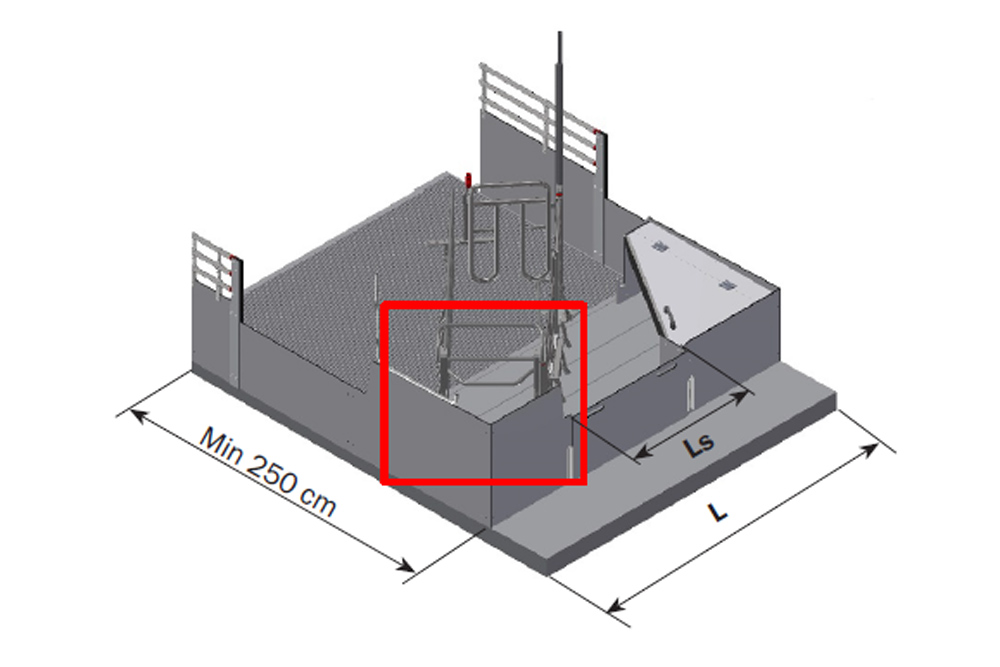

Model-2

MODEL 2 - CORNER TROUGH

Farrowing pen where sow trough is placed in the corner.

Dimensions,
cm		Diameter,
cm		Surface,
sq.m.		Available sow
space, sq.m.		Available sow
space, %
240x2701906,484,062%
250x2701906,754,262%
260x2701907,024,463%

Piglet nest typeMin pen length
(L), cm*		Min sow gate/exit
length (Ls) , cm
INN-O-CORNER (PVC)25060
Piglet nest (fiber)210
XL piglet nest (fiber)225

Note: We recommend a minimum sow gate length of 60 cm.
In the table, you can see the minimum farrowing pen length when using different types of piglet nests.

Note: We recommend a minimum sow gate length of 60 cm.
In the table, you can see the minimum farrowing pen length when using different types of piglet nests.

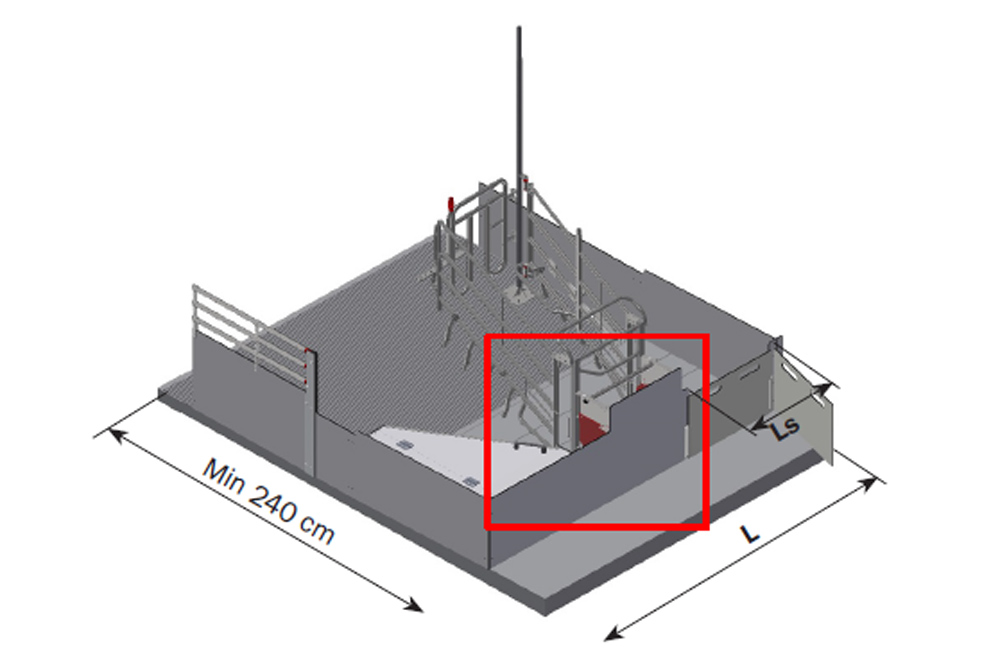

Model-3

MODEL 3 - NEST-SIDE

Farrowing pen where sow trough is placed close to piglet nest.

Dimensions,
cm		Diameter,
cm		Surface,
sq.m.		Available sow
space, sq.m.		Available sow
space, %
240x2701906,483,452%
250x2701906,753,552%
260x2701907,023,753%

Piglet nest typeMin pen length
(L), cm*		Min sow gate/exit
length (Ls) , cm
INN-O-CORNER (PVC)29060
Piglet nest (fiber)250
XL piglet nest (fiber)265
