ACO Funki A/S

Mating and gestation box: LD-box
Traditonal mating stall

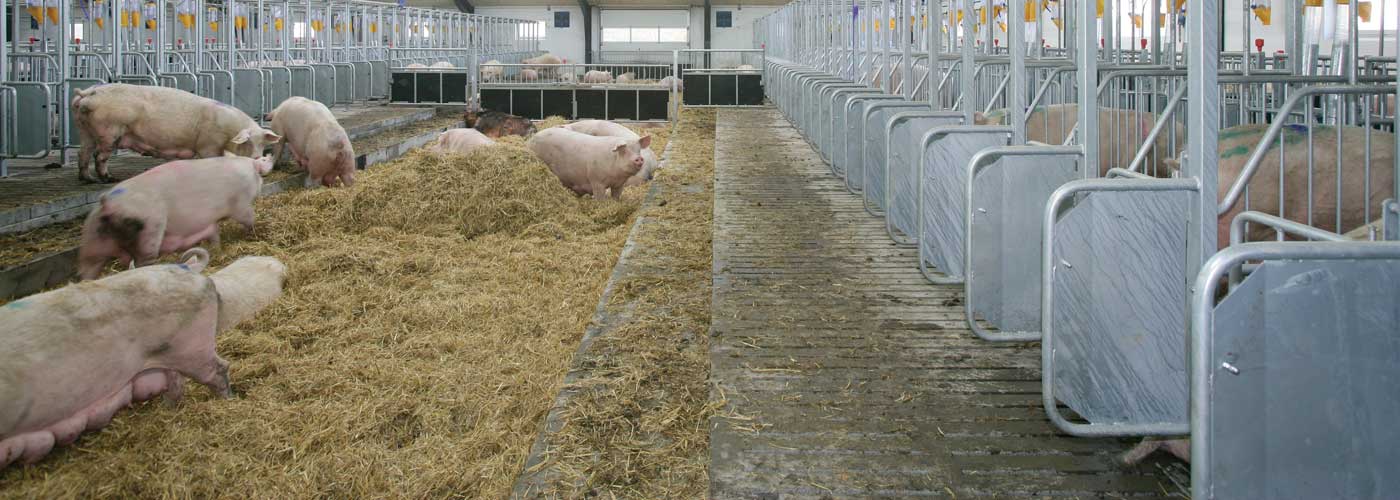

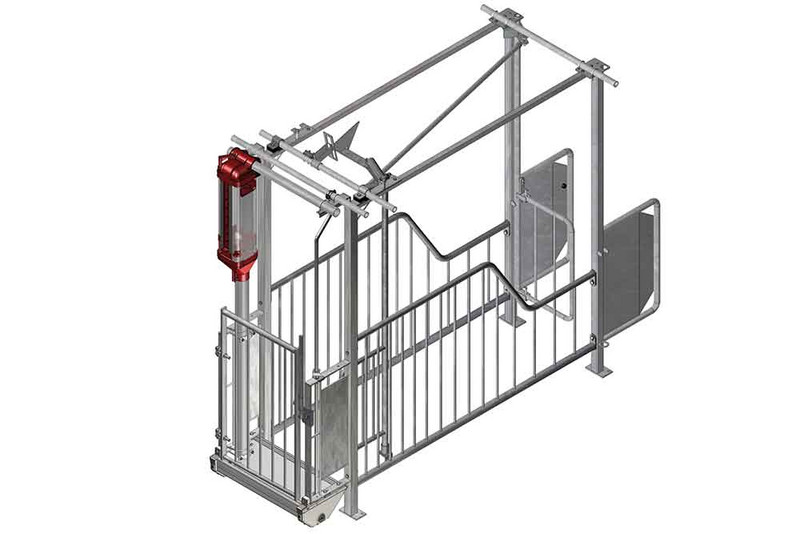

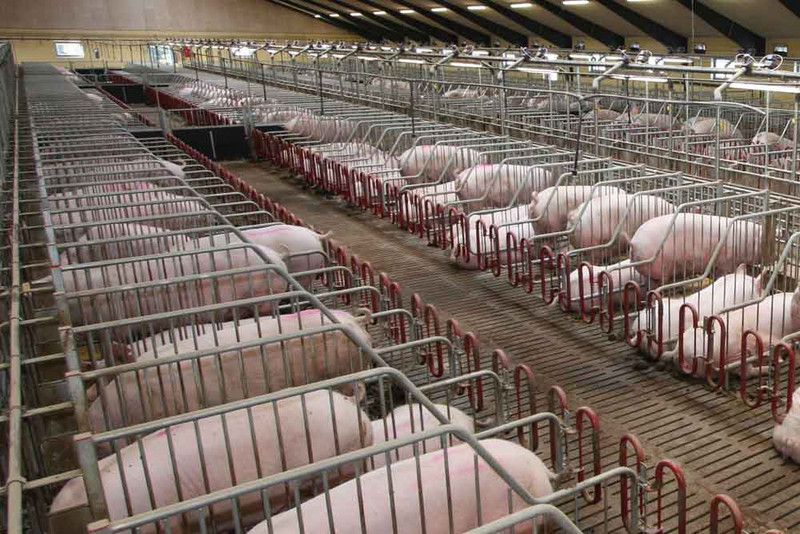

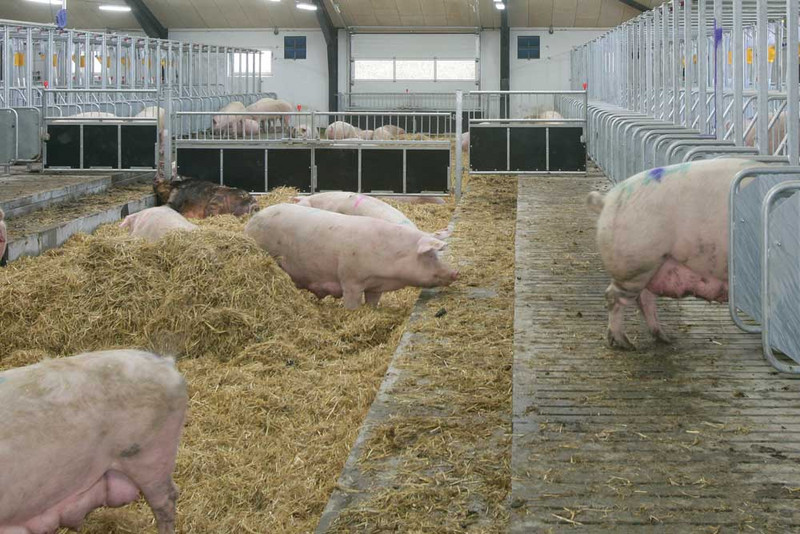

LD-box is a traditional mating box, that has an easy operating gate function and gives the sows a free choice. They can choose to stay in the box or in the resting area with the deep straw bedding. The sows are able to sort out the hierachy in the group before mating, which gives the foetuses the best conditions after fertilisation.

At the same time the deep bedding mat gives the sows unique possibilities for exercise and roughage - it will make the sows calm. Easy access through the rear gate, one-hand operated front gate and 2 meters height give the best working environment

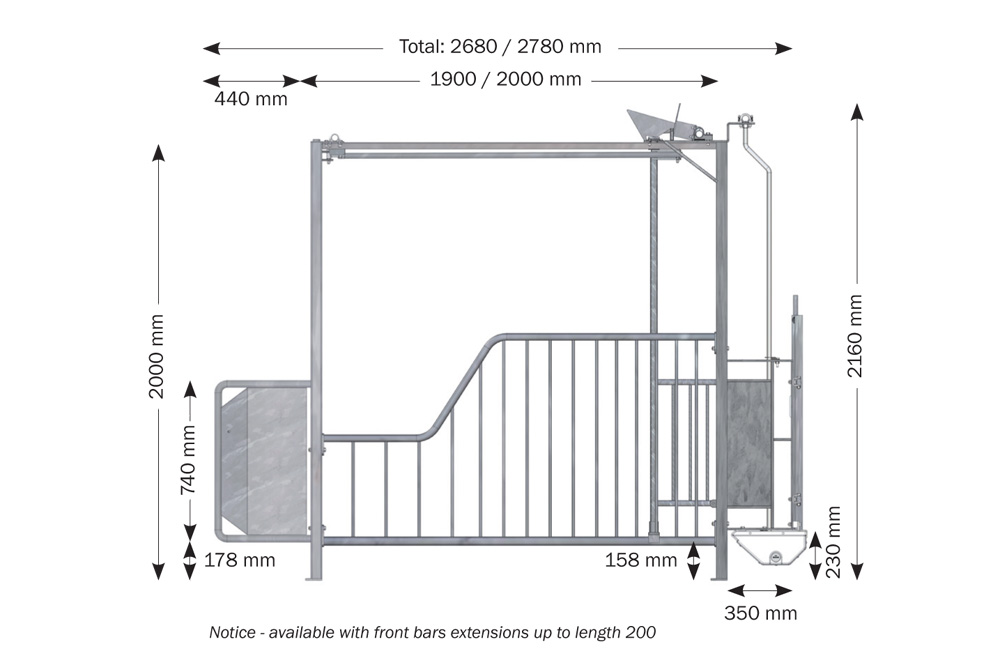

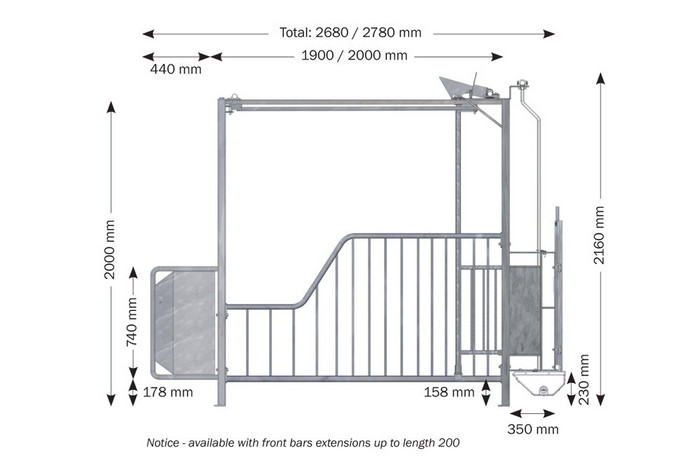

Lying length190/200 cm (w. front grille extension)
Height2000 mm
Width650 mm
Posts40 x 40 x 4 mm
Upper pipes33,7 x 2,65 mm
Lower pipes33,7 x 2,65 mm
Bars14 mm solid round iron
Front/ rear gateSide hinged
Locking system2 meter height
QualityHot galvanized
Water supply2 meter height: 1” galvanized or stainless steel
Water inlet½” SS pipe, SS nipple. 1 per 2 boxes
